KE Profile: Installation


Overview

​The KE profile comes in 24'-6" lengths which are field cut and joined with a system of concealed pins. The pins are glued into internal keyways to enable a flush outside face with no visible connectors.



Joints are quickly and easily sealed with supplied precut pieces of peel-and-stick butyl tape.

Installers must review installation guide and installation videos before starting work.

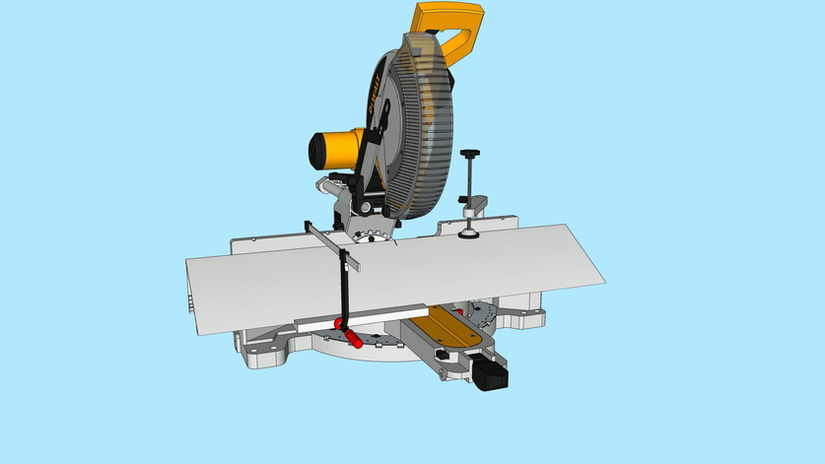

Cutting Duragutter
02:16
Join Straight Sections
02:47
Outside Miter
01:41

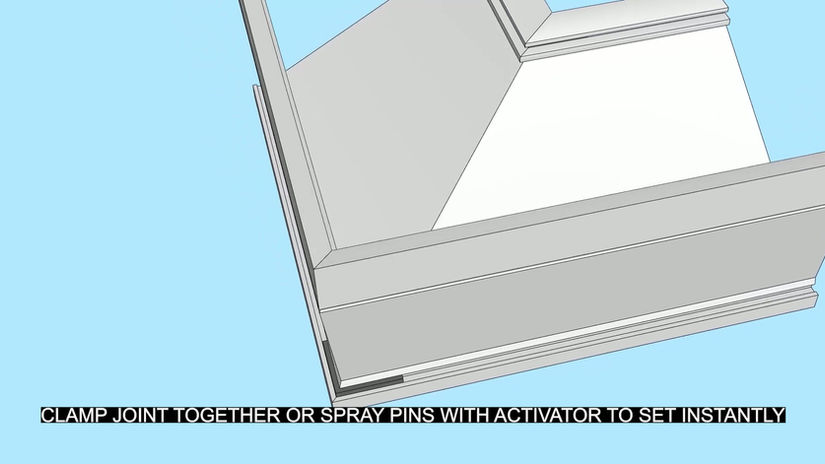

Inside Miter
01:59
Installing Rectangular/Square Outlet
01:54
Install End Cap (SQ shown, same for other profiles)
00:55
Install Internal Plug (SQ shown, same for other profiles)
00:49
Screw Gutter to Fascia  (SQ shown, same for other profiles)
01:05
Install Integral Flashing (OG shown, same for other profiles)
00:41
